EDAM-40
Patent Pending40mm Entanglement Drone Aerial Munition
Deploys a 2.8 m entanglement net in under one second from a standard 40mm launcher.
Calibre
40 mm
Net spread
2.8 m
Effective range
30 m
Deployment
<1 s
- Range Tested
- Non-Explosive
- In-Service 40mm Compatible
- Australian Sovereign Design
Overview
Protection at tactical range
The EDAM-40 is an Australian-developed 40mm munition designed to deploy a 2.8 metre entanglement net in under one second. Engineered for integration with standard 40mm grenade launchers already in service, it gives individual soldiers and fire teams an immediate counter-drone response against FPV UAS threats — no dedicated counter-drone system, no additional equipment, only existing launcher proficiency.
The munition employs a discarding sabot design that initiates a rapid net deployment sequence on barrel exit. It is optimised for close tactical engagements where drone proximity poses an immediate risk to personnel. As a sovereign Australian capability, it supports supply chain security and aligns with requirements for reliable, range tested personal protection systems.
Technical Diagram
Deployment mechanism
Net geometry — 2.8 m entanglement diameter
The EDAM-40 uses a sabot-activated deployment system to rapidly expand the entanglement net. Upon exiting the launcher, the three discarding sabots separate, releasing the five deployment arms. A low-power propellant charge then drives the arms outward, fully deploying the 2.8 metre net in under one second.
This non-explosive mechanism provides reliable, symmetrical deployment while remaining safe for the operator and surrounding personnel.
How It Works
From launch to entanglement
A four-stage sequence designed for reliable operation using standard launcher training.
Deployment < 1 s
Range Tested

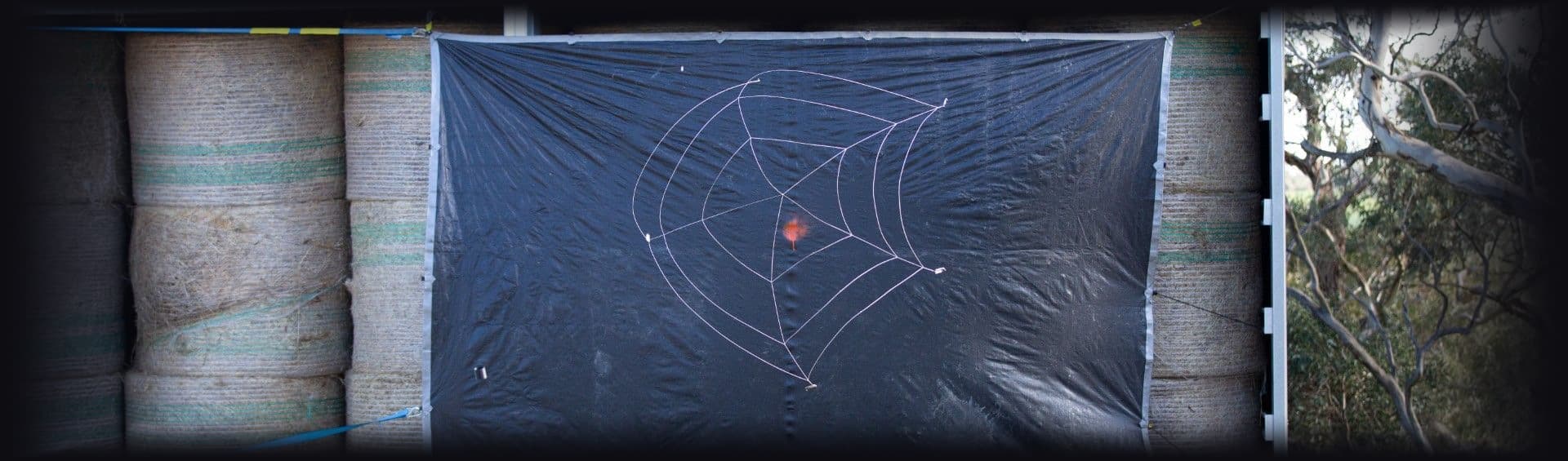

Net fully deployed
Deployed capture configuration — range testing
Technical Specifications
EDAM-40 specifications
Key performance parameters. Full technical data packages available on request under appropriate agreements.
Munition
- Designation
- EDAM-40
- Calibre
- 40 mm
- Type
- Entanglement net projectile
- Sabot
- 3 discarding sabots
Net System
- Deployment Arms
- 5
- Net Diameter
- 2.8 m
- Deployment Time
- < 1 sec
- Activation
- Sabot-triggered internal charge
Performance
- Effective Range
- 30 m
- Engagement Type
- Aerial net entanglement
- Collateral Profile
- Non-explosive capture net
- Target Class
- Group 1–2 UAS
Compatibility
- Launcher
- Standard 40 mm grenade launcher
- Employment
- Individual / squad-level
- Integration
- In-service small arms platforms
- Operator Training
- Standard launcher proficiency
- Technical Data
- Available on request
Key Features
Operational advantages
Designed for practical integration and reliable performance.
Standard Launcher Integration
Uses in-service 40mm grenade launchers. No new hardware, mounts, or dedicated counter-drone systems required.
Immediate Response
Deploys from the individual soldier or fire team level. Minimal additional training beyond existing launcher proficiency.
Low Collateral Profile
Non-explosive net capture reduces fragmentation risk to nearby personnel and sensitive equipment compared to kinetic or explosive effectors.
Sovereign Supply
Australian designed and manufactured. Provides assured supply chain security and supports domestic defence industry objectives.
Tactical Reach
Effective against low-altitude UAS at distances relevant to patrol and close combat scenarios.
Rapid Fielding
Integrates into current small-arms doctrine and unit loadouts. Supports quick adoption across infantry and specialist teams.
